| Additional Information | : | 10 A at 480 V, 20.8 A at 120/208/240/277 V Contact, 50/60 Hz Frequency, -20 to 155 deg F Temperature |
| Amperage Rating | : | 12 A |
| Coil Voltage | : | 24 V |
| Mounting Type | : | Screw |
| Overall Depth | : | 2-3/8 in |
| Overall Height | : | 1-7/8 in |
| Overall Width | : | 2-5/32 in |
| Terminal Type | : | Double Quick-Connect |
| Voltage Rating | : | 12 V |

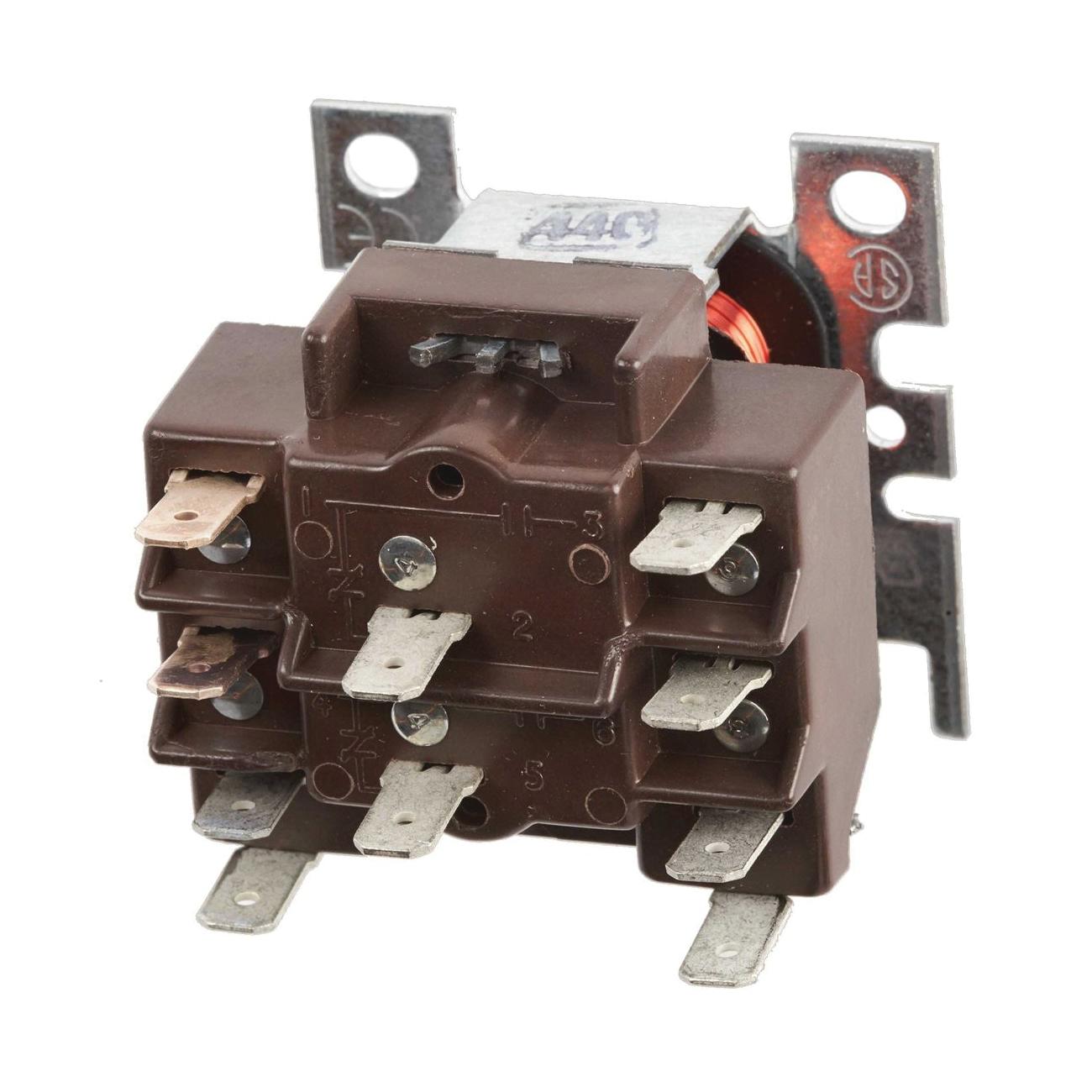

resideo General Purpose Relay, 12 V, 12 A, 24 V Coil, Double Quick-Connect Terminal, Screw Mount, 2-5/32 in Overall Width, 2-3/8 in Overall Depth, 1-7/8 in Overall Height, Additional Information: 10 A at 480 V, 20.8 A at 120/208/240/277 V Contact, 50/60 Hz Frequency, -20 to 155 deg F Temperature
- This general purpose switching relay from Resideo has a 24 VAC coil and works with low voltage applications

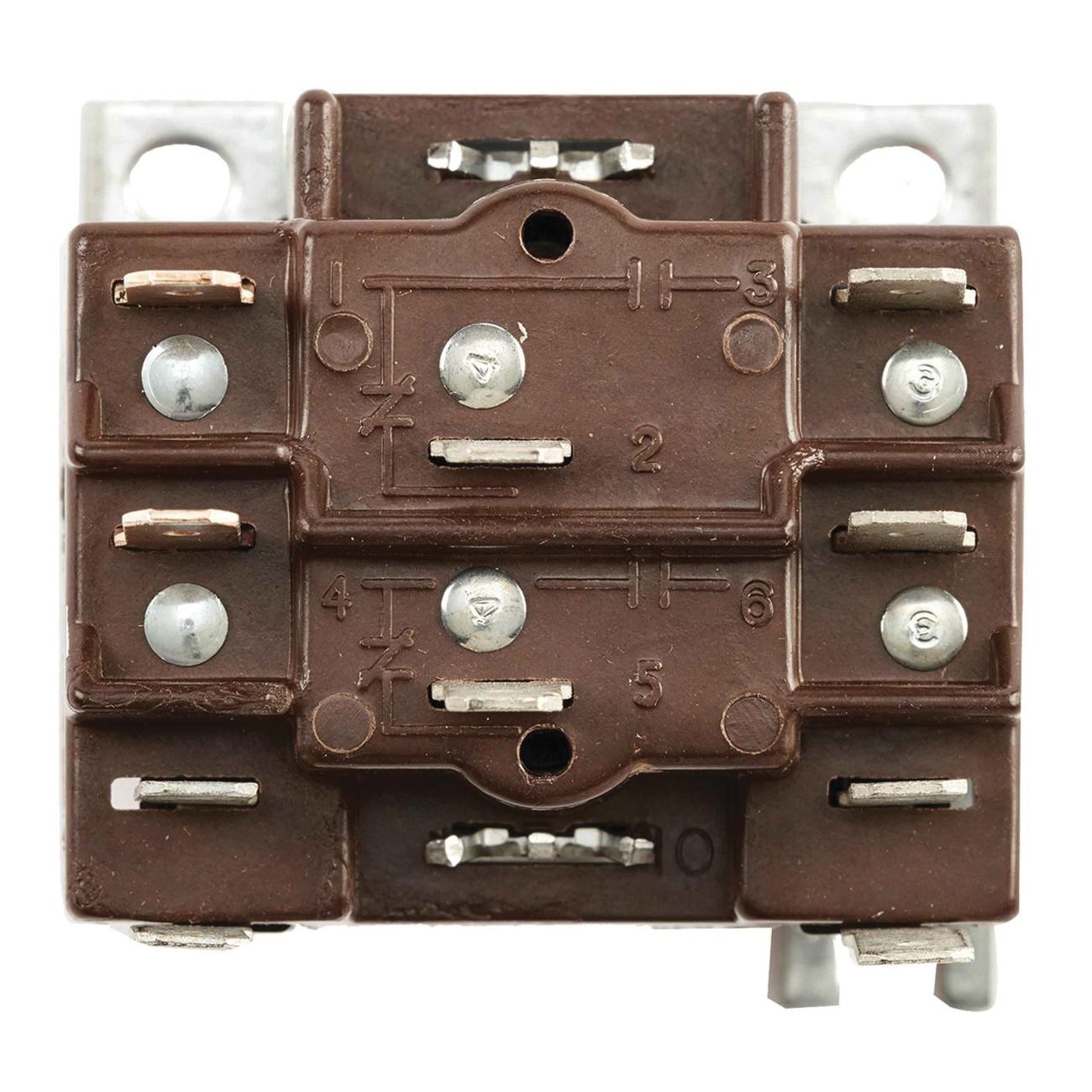

- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
- Open coil assures cooler operation
- Laminated magnet construction for higher efficiency
- Base designed for easy replacement of competitive relays
